In the field of stage set-up, it is often essential to position components securely and fasten structures reliably.
Examples of this include loudspeaker stands, which must be set up and secured safely, or microphones, which must remain in their intended position during an event or be adjusted quickly and easily to suit the user’s height.

Applications of the b-plastic range

The application examples shown provide an insight into the wide range of uses for our b-plastic product range in the field of stage design. The product links will take you directly to the relevant items and further information.

Concert stage equipped with two large speakers and a microphone with stand, glides and protection caps
Microphone on adjustable stand, wing screws, protection knob and knurled screws, isolated on white background
Black speaker woofer, front view. Isolated against a white background

1. Glides / Caps

  • VS/Q – Angled lamella glides for square tubes
  • VGRL/Q – Lamella plugs with variable angled base for square tubes

2. and 6. Protection caps

  • EB – Long caps with at least 5 mm base
  • EL – Long caps with at least 6 mm base
  • PSP – Heavy duty caps for round tubes

3. and 8. Wing screws

  • FSO – Wing screws with threaded bolt (overmoulded)
  • BE 68 – Wing screws with threaded bolt (overmoulded)
  • BK – Wing screws with threaded bolt (overmoulded)

4. Protection knobs

  • KNRU – Tappered knob with round head, elastically
  • KNRG – Tapered knob with round head and threaded hole, elastically
  • KNOS – Knob with plug, elastically

5. Knurled screws

  • BI 22 – Knurled screws with threaded bolt
  • RDGS – Knurled screws with shank and fine knurl
  • RDSO – Knurled screws with fine knurl

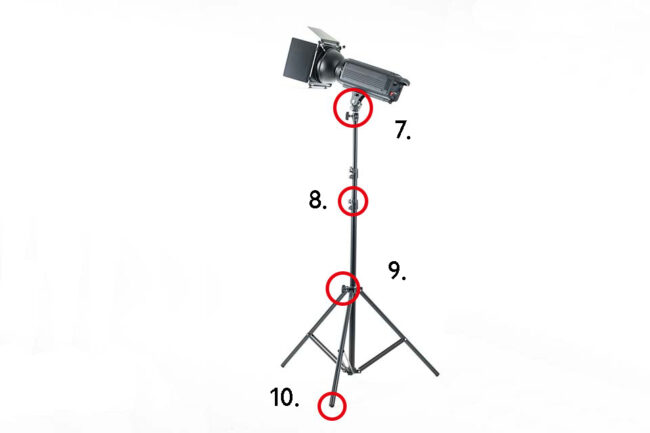

Black spotlight positioned sideways on a tripod, isolated against a white background
Rows of grey chairs lined up close together in the auditorium of a theatre
DJ table with holder with application of using b-plastic plugs and wing screws

7. Star knobs

  • STG2A – Bright polished star knobs (DIN 6336 L/thermosetting plastics) with threaded bolt
  • STG3A – Star knobs with threaded bolt

9. Three star knobs

  • DSTS – Dreisterngriffe mit Gewindebolzen

10. Cover plugs

  • GL – Lamella plugs for round tubes
  • BS – Round covering plugs
  • HSA – Round covering plugs, not removable

11. Sturdy adjustable feet

  • GGUG2000 – Heavy duty articulated glides made of PA 6 with PTFE slide base
  • GGM2000 – Heavy duty articulated glides made of PA 6 with stainless steel slide base
  • RSG – Inclined lamella glides made of PE for round tubes with variable set-up angle and stacking protection

12. Wing screws for assembly

  • FSIS – Wing screws with threaded bolt
  • FSG – Wing screws with threaded bolt

13. Plugs for covering pipes

  • VL/R – Lamella plugs for rectangular tubes
  • VSFL/RE – Lamella plugs with cover plate 2 mm for rectangular tubes
  • B45 – Sight plugs for rectangular tubes
