Adjustment plugs - RJG

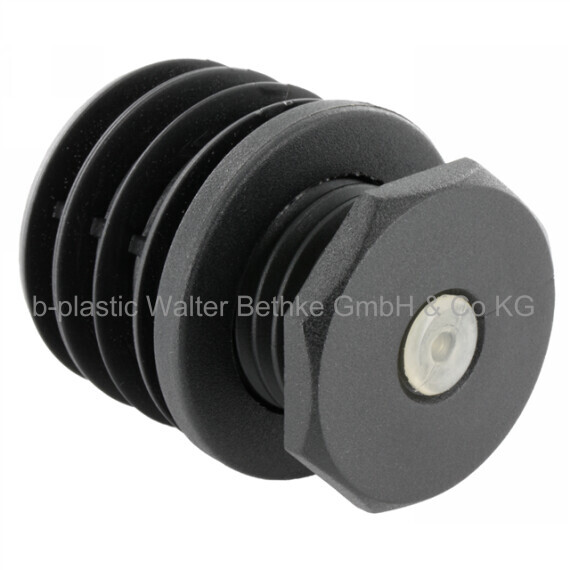

Adjusting plugs made of PA 6 for round tubes with slip stopper, one piece outer body and injection moulded thread

Your session has expired, please log in again.
RJG
RJG (<60)
RJG (>=60)
RJG (<60)
RJG (>=60)
RJG
RJG (<60)
RJG (>=60)
RJG (<60)
RJG (>=60)
PDF data sheet
  • Polyamide 6 (PA 6)
  • Anti-slip insert: Polyurethane (PUR)
black RAL 9005
  • The feet must be adjusted in an unloaded state.
  • The specified axial, static load capacity refers to a screw turned out 10 mm and resting on the full surface.
  • Adjusting plugs are not suitable as load gliders.
  • Adjusting plugs are not suitable for dynamic load.
  • Further sizes
  • Other special productions
  • *) K = split assembled outer part
  • **) = The lamella shape of the nut can be closed or interrupted
  • ***) = from Ø 60 mm supplied with mounted threaded shell
  • Please observe the material hints for polyamide (PA).
