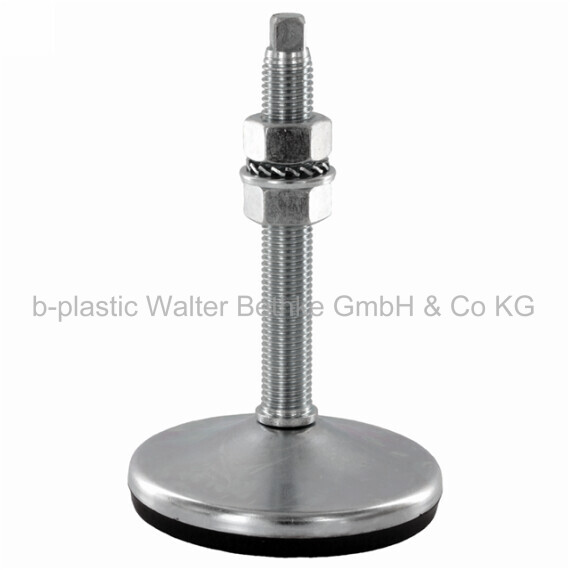

Machine foot - MFAS

Machine feet made of stainless steel with vulcanised, vibration-damping rubber base

Your session has expired, please log in again.
PDF data sheet
  • Thread: AISI 304 (A2)
  • Rubber: NBR 80 Shore, vulcanized
  • Included in the scope of delivery: 2 nuts, 1 washer, 1 tooth lock washer
  • The rubber of the machine base is 10 mm thick and the surface is infused with circular veins for optimum vibration damping.
  • The foot is made of pressed moulded sheet metal. The vulcanized rubber is firmly attached to the sheet. This prevents the penetration of bacteria and ensures a high standard of hygiene.
  • The machine foot can compensate for uneven floors up to 5°.
  • Machine tools, injection moulding units, shearing machines, vibrators, printing machines, etc. ...
  • The load capacity of the screw (buckling length!) may be less than indicated in the table.
  • The machine foot is adjusted via the square on the threaded head.
