Machine foot - MFSSB

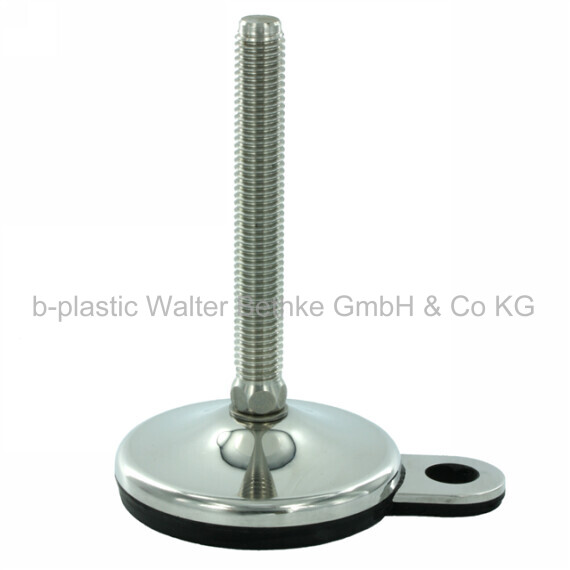

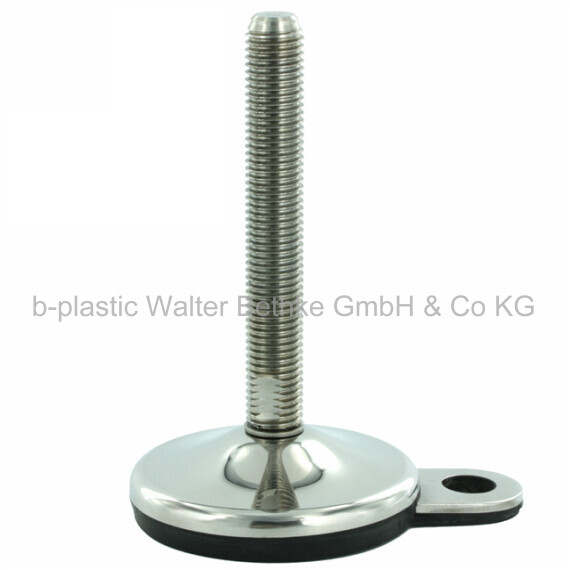

Machine feet made of stainless steel with fixing system and vulcanised rubber pad

Your session has expired, please log in again.
MFSSB
MFSSB
MFSSB
MFSSB
PDF data sheet
  • Base body: AISI 304 (A2)
  • Rubber: NBR 80 Shore, vulcanized

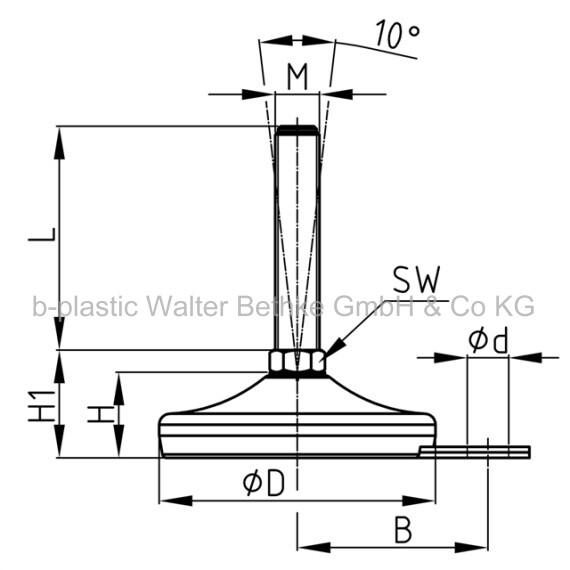

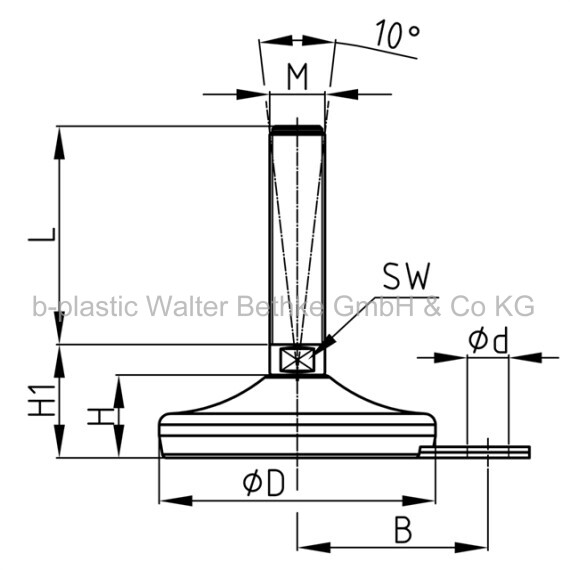

  • Depending on the size of the thread or the foot diameter, the machine foot is provided with a chamfer on both sides or with a hexagon as a spanner flat.
  • The foot is made of pressed moulded sheet metal. The vulcanized rubber is firmly attached to the sheet. This prevents the penetration of bacteria and ensures a high standard of hygiene.
  • Die abgerundete Form und der verdeckte Übergang vom Fuß zum Gewinde erleichtern die Reinigung.
  • The machine foot can compensate for uneven floors up to 10°.
  • Food industry
  • The load capacity of the screw (buckling length!) may be less than indicated in the table.
  • Machine foot made of stainless steel AISI 316 (A4)
