Machine foot - MFTV

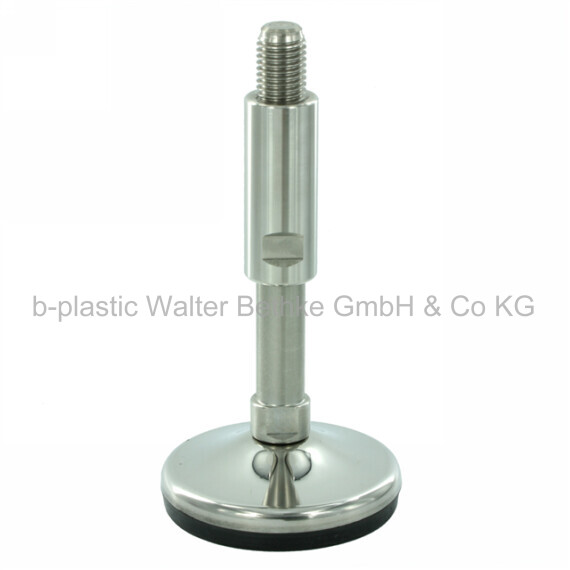

Machine feet made of stainless steel with sealing bush and vulcanised rubber pad

Your session has expired, please log in again.
MFTV
MFTV
PDF data sheet
  • Base body: AISI 304 (A2)
  • Rubber: NBR 80 Shore, vulcanized
  • The machine base has a sealing bush that covers parts of the thread. An O-ring is incorporated inside the bush. The sealing ring prevents the penetration of dirt by mechanically sticking to the thread surface. Thus the strictest legal hygiene standards are fulfilled.
  • Die abgerundete Form und der verdeckte Übergang vom Fuß zum Gewinde erleichtern die Reinigung.
  • EPDM meets the USDA standards for rubber products.
  • The machine foot can compensate for uneven floors up to 10°.
  • Especially suitable for tanks and cisterns, also for the beverage industry, chemical industry
  • The load capacity of the screw (buckling length!) may be less than indicated in the table.

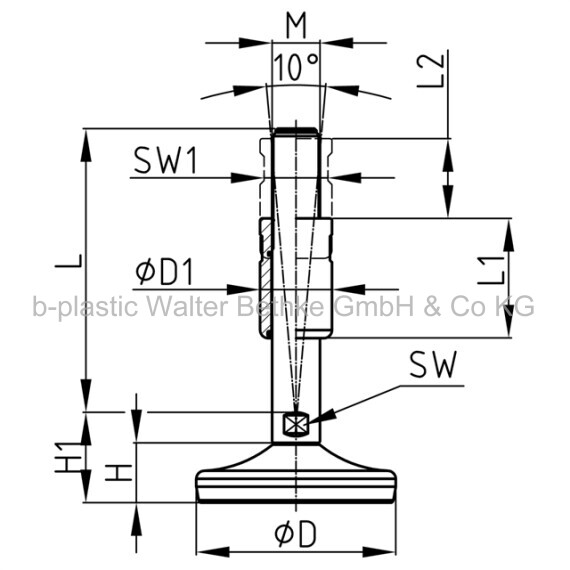

  • Character dimension "L2" corresponds to the maximum usable stroke in mm.
