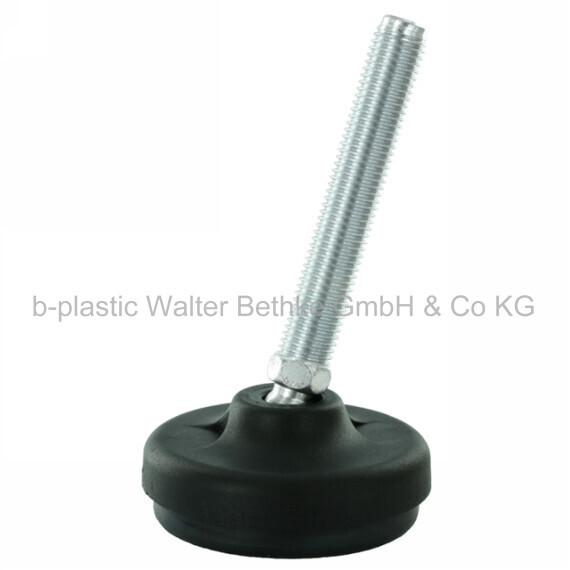

Adjustable machine foot - MFEA

Articulated machine feet made of glass fibre-reinforced polyamide, galvanised steel thread and vibration-damping rubber base

Your session has expired, please log in again.
MFEA
MFEA
MFEA
MFEA
PDF data sheet
  • Thread: zinc-plated steel
  • Base: glass fibre reinforced polyamide (PA-GF)
  • Rubber: NBR 70 Shore
black
  • A thicker rubber plate absorbs oscillations and vibrations.
  • The machine foot can compensate for uneven floors up to 30°.
  • There are two prepared screw-on holes (closed).
  • Compressors, feeders, vibrators, cleaning machines
  • The foot is used in work areas with low stress.
  • The vulcanised polyamide base is used to solve vibration problems.The base is made of vulcanised polyamide and is used to solve vibration problems.
  • The load capacity of the screw (buckling length!) may be less than indicated in the table.
  • Delivery with additional steel nut possible.
