Group MFEF

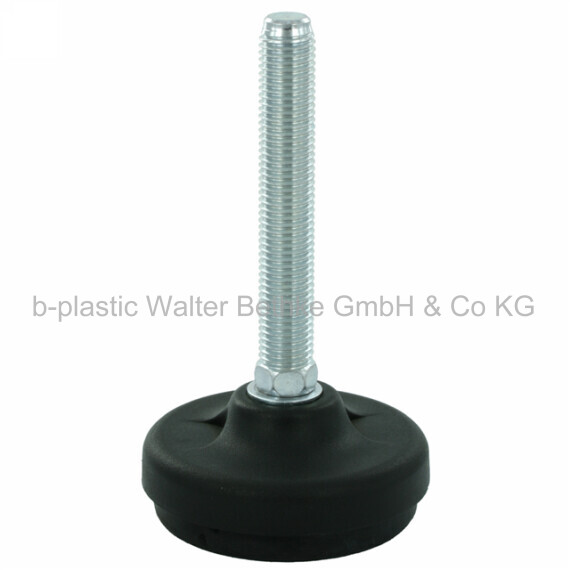

Vibration damping adjustable machine feet made of glass fibre reinforced polyamide, zinced steel thread and rubber base

Your session has expired, please log in again.
MFEF
MFEF
MFEF
MFEF
MFEF
MFEF
MFEF
MFEF
PDF data sheet
  • Thread: zinc-plated steel
  • Base: glass fibre reinforced polyamide (PA-GF)
  • Rubber: NBR 70 Shore
black
  • A thicker anti-slip-plate absorbs vibrations.
  • The machine foot can cope with up to 4° slopes on floors and equipment.
  • There are two prepared screw-on holes (closed).
  • Compressors, feeders, vibrators, cleaning machines
  • The machine foot is the right solution in context of light loads.
  • The vulcanized polyamide base is also used to solve vibration problems.

The load capacity of the screw can be lower than indicated in the table overview (buckling length!)

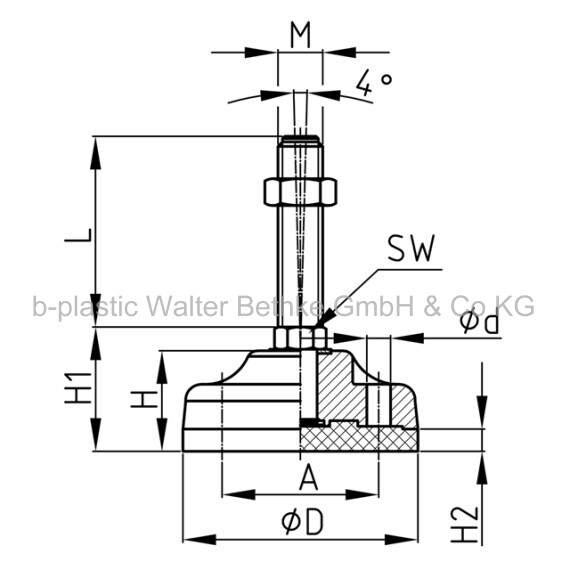

Group + D + M + Thread Length ---> MFEF 83 M14x 50

  • Delivery with additional steel nut possible.
