Group 34

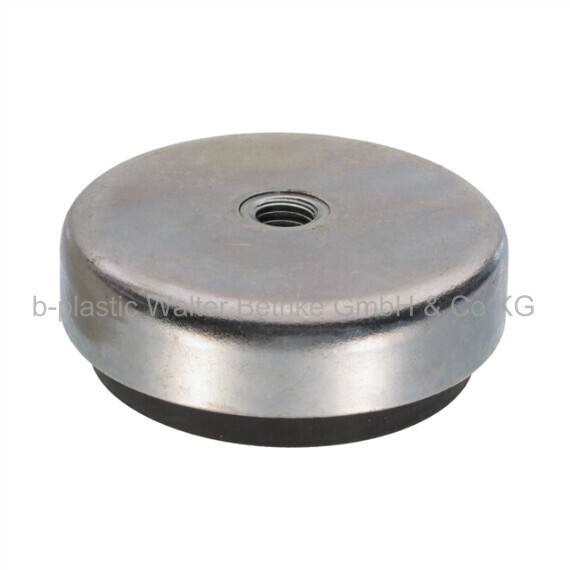

Machine feet with rubber base and thread

Your session has expired, please log in again.
34
34
34
34
34
34
PDF data sheet
  • Jacket: zinc-plated steel
  • Foot: Rubber - EPDM 70 Shore A
black
  • Thickness of the steel cap: 3 mm

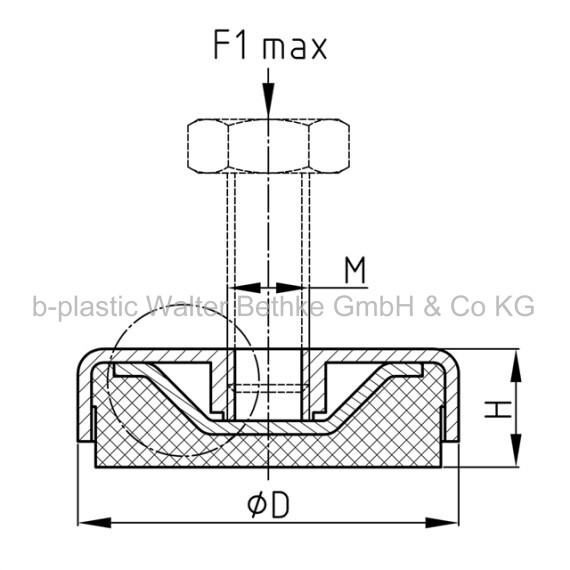

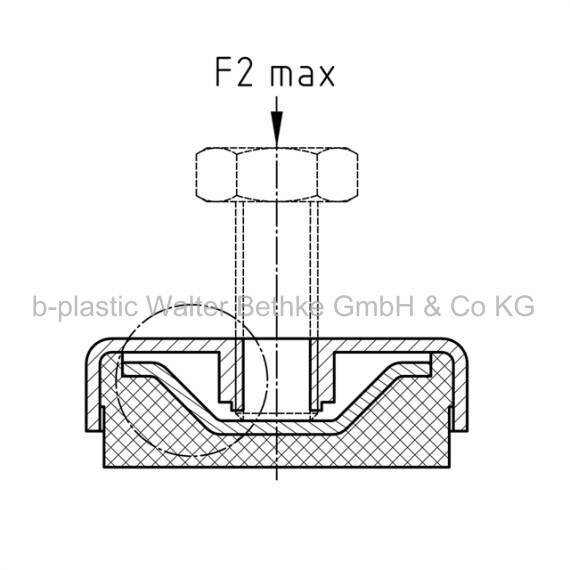

  • Load with diameter 75 mm: max. 750 kg (with fully screwed-in threaded rod/otherwise max. 100 kg)
  • Load with diameter 109 mm: max. 1.200 kg (threaded bolt is completely turned in/otherwise max. 100 kg)
