Group MFCSB

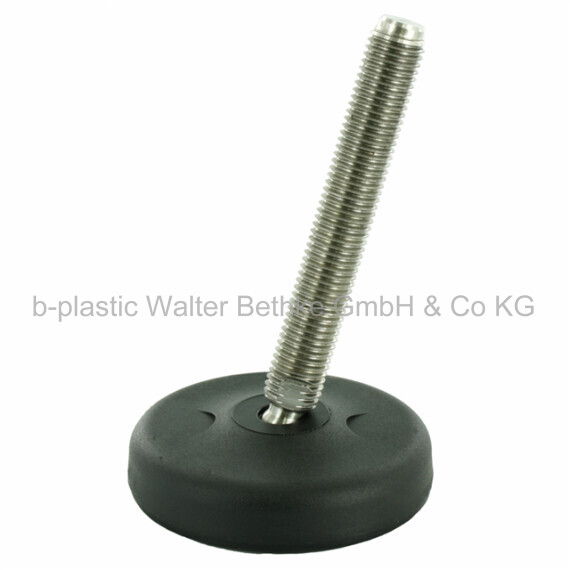

Articulated machine feet made of glass fibre reinforced polyamide and stainless steel thread, optional with antislip pad (A)

Your session has expired, please log in again.
MFCSB
MFCSB
MFCSB
MFCSB
PDF data sheet
  • Thread: AISI 304 (A2)
  • Base: glass fibre reinforced polyamide (PA-GF)
  • Antislip pad: NBR 70 Shore
black
  • There are two prepared screw-on holes (closed).

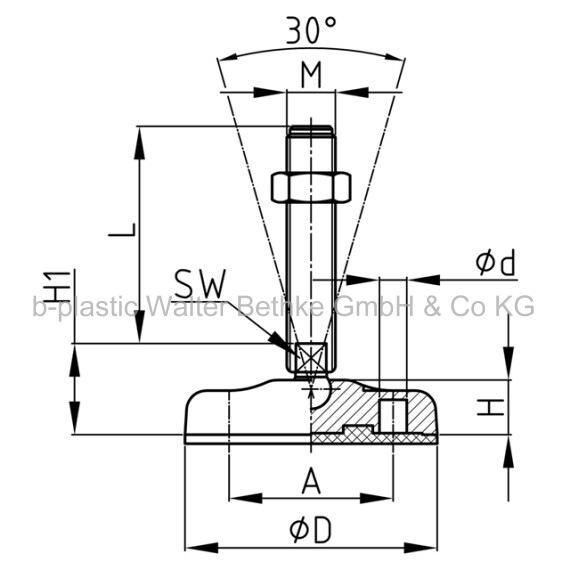

  • The machine foot can cope with up to 30° slopes on floors and equipment.
  • Packaging industry, conveyor systems, automation industry, office desks, aluminium profiles

The load capacity of the screw can be lower than indicated in the table overview (buckling length!)

Group + D + M + Thread Length ---> MFCSB 83 M16x 100 (A)

  • Delivery with additional steel nut possible.
  • Thread made of stainless steel AISI 316 (A4)
