Group MFCSW

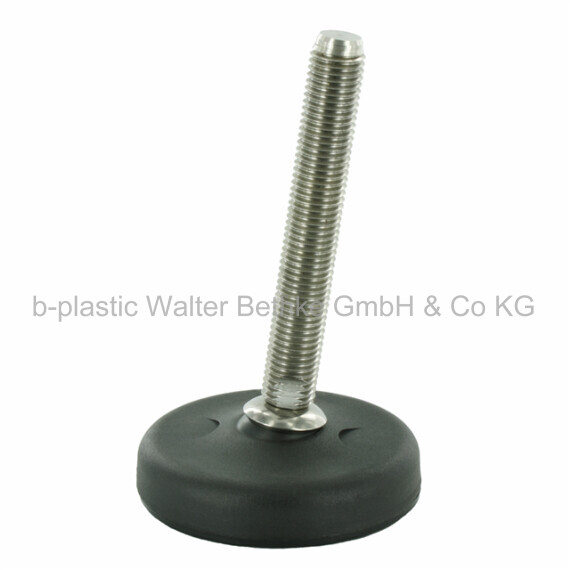

Articulated machine feet made of glass fibre reinforced polyamide and stainless steel thread, cover between foot/thread, optional with antislip pad (A)

Your session has expired, please log in again.
MFCSW
MFCSW
MFCSW
MFCSW
PDF data sheet
  • Thread: AISI 304 (A2)
  • Base: glass fibre reinforced polyamide (PA-GF)
  • Antislip pad: NBR 70 Shore
black
  • There are two prepared screw-on holes (closed).
  • The machine foot can cope with up to 16° slopes on floors and equipment.
  • Packaging industry, conveyor systems, automation industry, office desks, aluminium profiles
  • Food industry

The load capacity of the screw can be lower than indicated in the table overview (buckling length!)

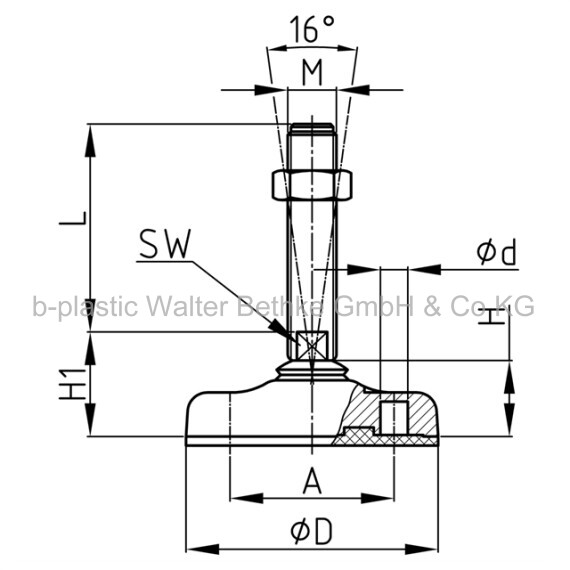

Group + D + M + Thread Length ---> MFCSW 83 M16x 100 (A)

  • Delivery with additional steel nut possible.
  • Thread made of stainless steel AISI 316 (A4)
