Group MFPAB

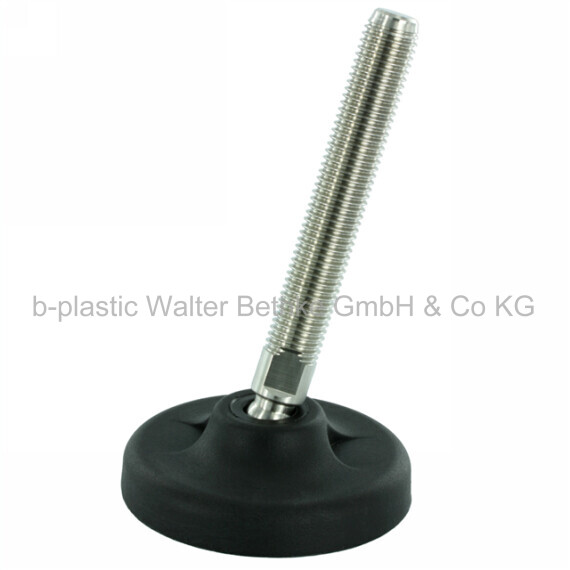

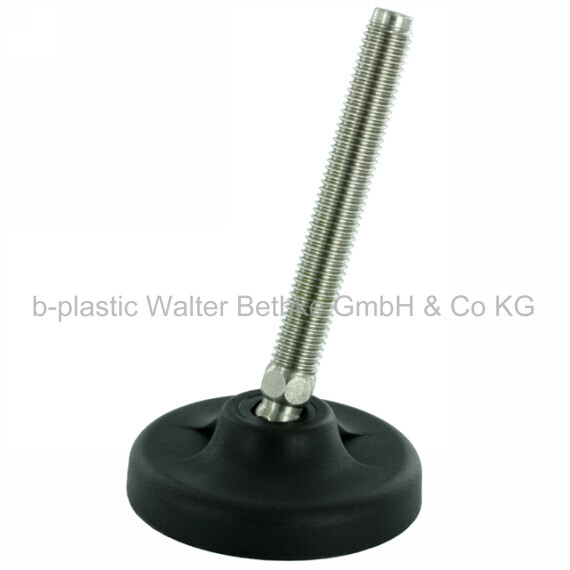

Articulated machine feet made of glass fibre reinforced polyamide and stainless steel thread, optional with antislip pad (A)

Your session has expired, please log in again.
MFPAB
MFPAB
MFPAB
MFPAB
MFPAB
MFPAB
MFPAB
MFPAB
PDF data sheet
  • Thread: AISI 304 (A2)
  • Base: glass fibre reinforced polyamide (PA-GF)
  • Antislip pad: NBR 70 Shore
black

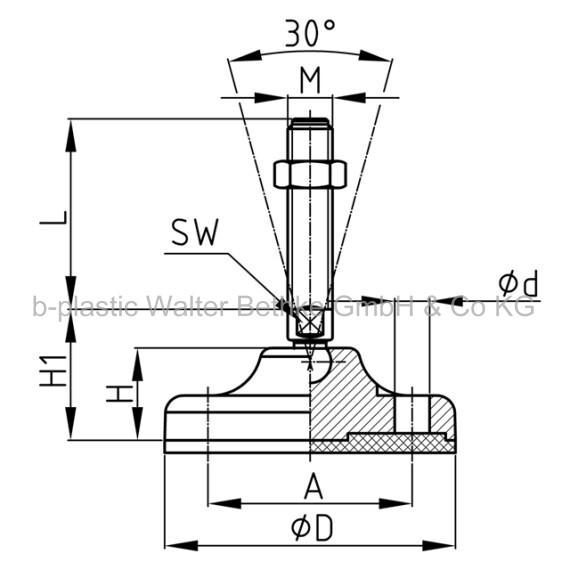

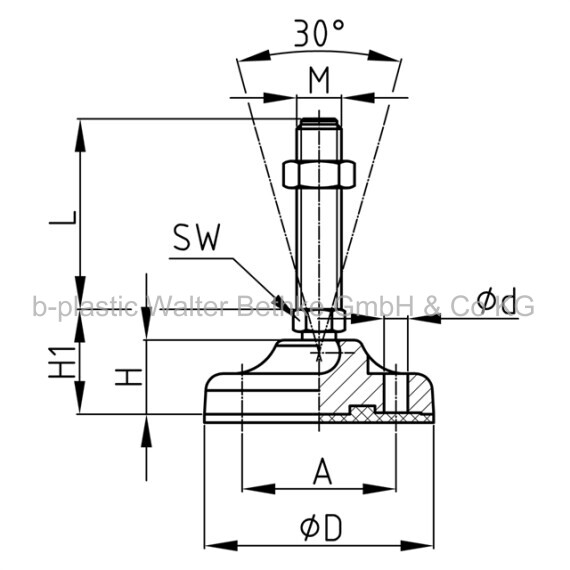

  • Depending on the size of the thread/base diameter, the machine base has a two-sided chamfer or a hexagon as key flat.
  • The machine foot can cope with up to 30° slopes on floors and equipment.
  • There are two prepared screw-on holes (closed).
  • Packaging industry, conveyor systems, automation industry, office desks, aluminium profiles

The load capacity of the screw can be lower than indicated in the table overview (buckling length!)

Group + D + M + Thread Length ---> MFPAB 83 M10x 50 (A)

  • Thread made of stainless steel AISI 316 (A4)
  • Thread made of galvanized steel, look at product group MFPAH
  • Delivery with additional steel nut possible.
  • L = lower maximum load

Configure your article. Enter multiple parameters to get the best result.
