Group MFG

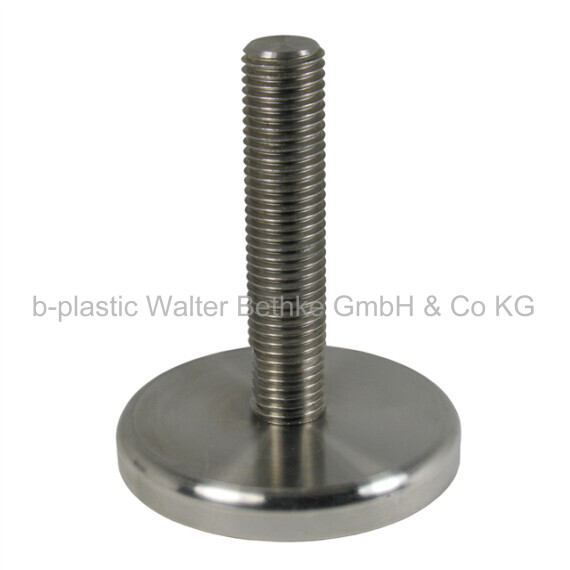

Machine feet made of stainless steel (optional with antislip pad)

Your session has expired, please log in again.
MFG
MFG-xG
MFG
PDF data sheet
  • Base body: AISI 304 (A2)
  • Rubber: NBR 72 Shore
  • The machine foot is for use with machinery which are exposed to thermal expansion and contraction (ovens, freezers, ...).
  • The solid stainless steel design makes the foot highly resilient. The rounded shape makes cleaning easier.

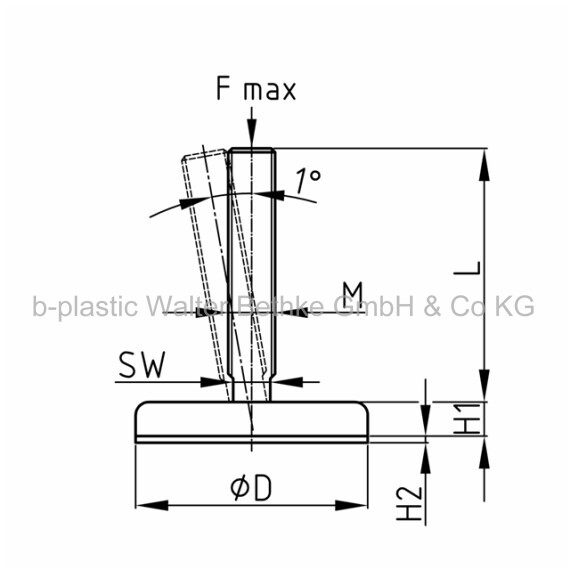

The load capacity of the screw can be lower than indicated in the table overview (buckling length!)

Group + D + M + Thread Length ---> MFG 110 M16 x 100

  • The foot can be supplied with anti-slip rubber plate which is glued on the stainless steel plate.
  • Please order separately (MFGxG, x = D)!
