Group MFKG

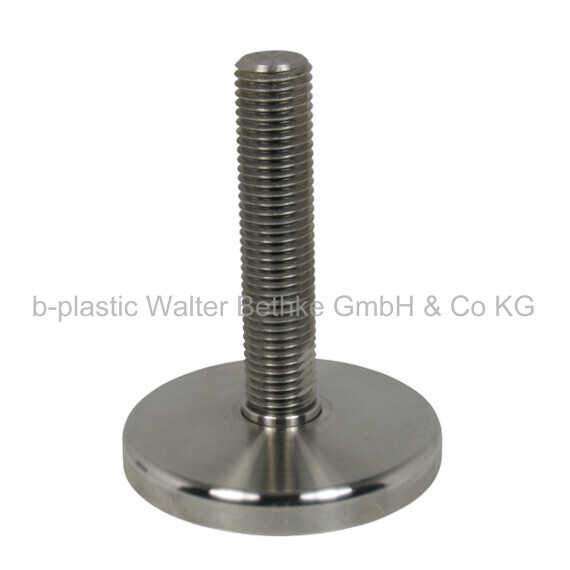

Machine feet made of stainless steel (optional with antislip pad)

Your session has expired, please log in again.
PDF data sheet
  • Base body: AISI 304 (A2)
  • Rubber: NBR 72 Shore
  • The machine foot is for use with machinery which are exposed to thermal expansion and contraction (ovens, freezers, ...).
  • The solid stainless steel design makes the foot highly resilient. The rounded shape makes cleaning easier.
  • The machine foot can cope with up to 8° slopes on floors and equipment.
  • The machine foot is the right solution in context of light loads.

The load capacity of the screw can be lower than indicated in the table overview (buckling length!)

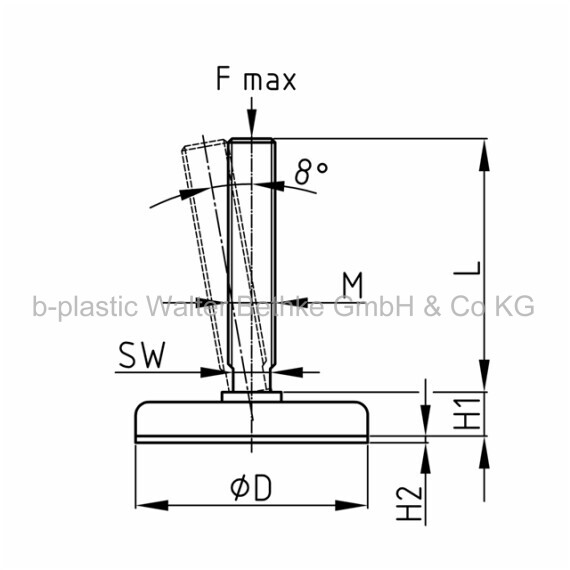

Group + D + M + Thread Length ---> MFKG 110 M16 x 100

  • The foot can be supplied with anti-slip rubber plate which is glued on the stainless steel plate.
  • Please order separately (MFKGxG, x = D)!
