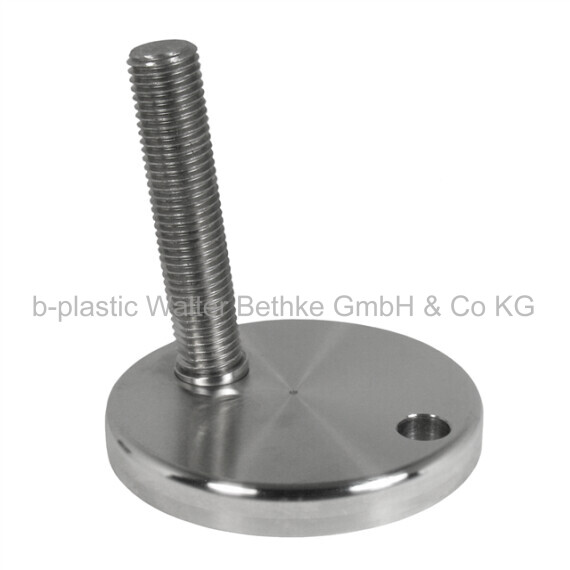

Eccentric machine feet made of stainless steel with one fixing hole (optional with antislip pad)
Your session has expired, please log in again.

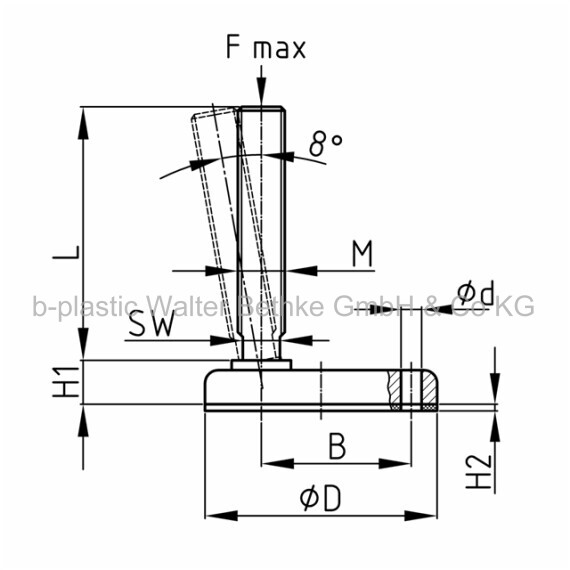

- The machine foot has its threaded spindle displaced from the centre of the foot plate which provides a larger distance between spindle and fixing hole.
- The solid stainless steel design makes the foot highly resilient. The rounded shape makes cleaning easier.
- The machine foot can cope with up to 8° slopes on floors and equipment.
The load capacity of the screw can be lower than indicated in the table overview (buckling length!)
Group + D + M + Thread Length ---> MFKCF 110 M16 x 100
- The foot can be supplied with anti-slip rubber plate which is glued on the stainless steel plate.
- Please order separately (MFKCFxG, x = D)!
