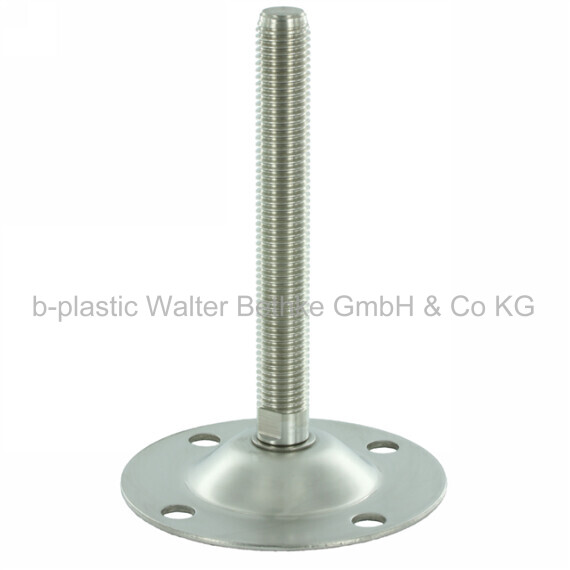

Form- punched machine feet made of stainless steel with 2 or 4 fixing holes

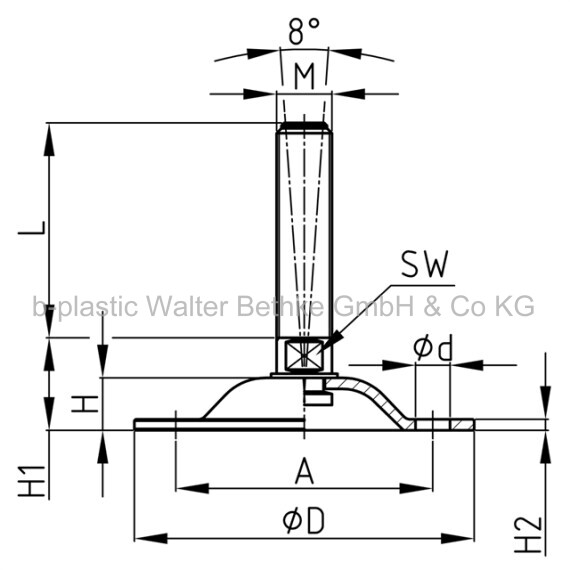

- The machine foot can cope with up to 8° slopes on floors and equipment.
- The machine foot offers the possibility to personalize the base with your company logo.
- From the foot diameter Ø123 mm there are 4 mounting holes.
- Palletizing machines, woodworking machines, generally in production machines
The load capacity of the screw can be lower than indicated in the table overview (buckling length!)
Group + D + M + Thread Length ---> MFDH 85 M16x 100
- Machine foot made of stainless steel AISI 316 (A4)
- Delivery with additional steel nut possible.
