Group GGUG 2000

Heavy duty (intended use) articulated glides with PTFE slide base

Your session has expired, please log in again.

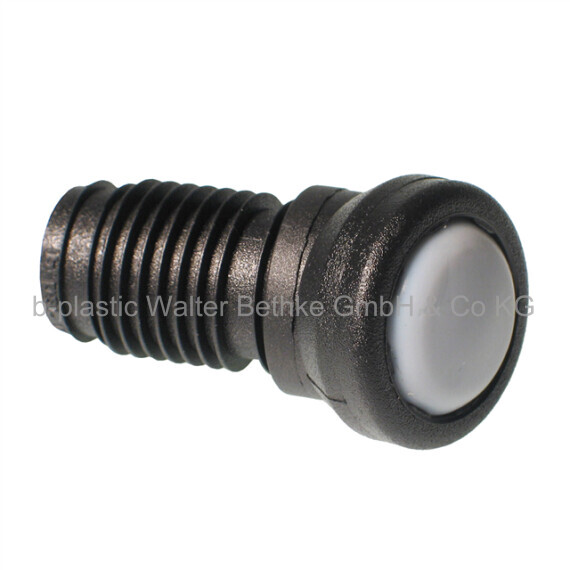

GGUG 2000

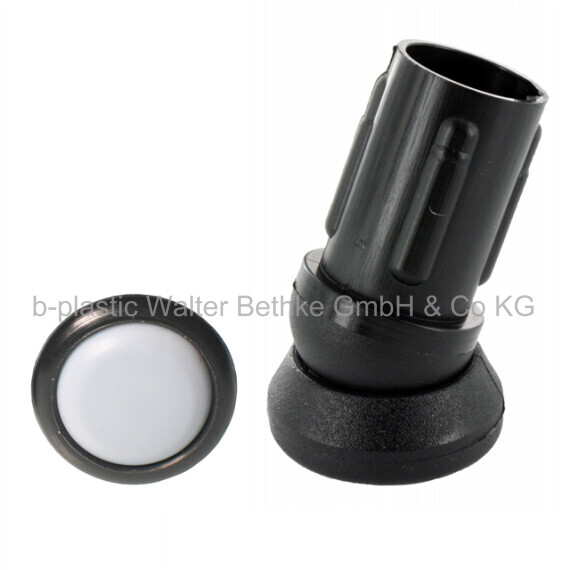

GGUG 2000 extra Schaft
GGUG 2000
LGA test seal
GGUG 2000
GGUG 2000 extra Schaft
GGUG 2000
LGA test seal
PDF data sheet
  • Base body: Polyamide (PA 6)
  • Slide base: Polytetrafluorethylene (PTFE)
black RAL 9005
  • Applicability:
  • Very good noise damping due to plastic/rubber buffers in sliding insert.
  • Good slippage due to PTFE gliding base surface
  • Well suited for textile/carpet floors
  • Conditionally suitable for smooth floors (unintentional slipping of the chair - to be tested by the user)
  • Abrasion of the gliding surface is subject to floor conditions (surface, floor pollution, etc.) and the load on the chair (to be tested by the user. A guarantee cannot be given by the manufacturer)
  • The article groups GGx2000 have been tested by the LGA with a displacement test and a tilt / drop test and are further tested in random samples every year. The tilt and drop test is already a test procedure that clearly exceeds the normal use or the intended use of chairs. In the event that chairs are pushed against solid ground sills with momentum, we cannot assume any warranty, although moving chairs against ground sills is not critical in the intended use by the user. In the case of seating with stacking chairs and in the case of object seating, it should be ensured that the floor is level and without any cracks and fixed ground sills.
  • The shafts of the furniture glides are equipped with screw lamellas for easier installation in tubes (wall thickness 2 mm).
  • Shaft for tube diameter 20 mm is available with screw rib or clamp trips.
  • Further shaft measures starting with 19x1-1,5
  • Further base measures up to appr. 60 mm
  • No materials possible for reinforcement or electrical diverting.
  • e.S. = extra shank
  • Series GGx2000 are patented.
  • Patent 23 312 EP/PCT - DE 199 23 320
