Group VJG

Adjusting plugs for square tubes with anti-slip plug, one-piece outer body (from Ø 60 mm with mounted threaded shell) and injection moulded thread

Your session has expired, please log in again.
VJG

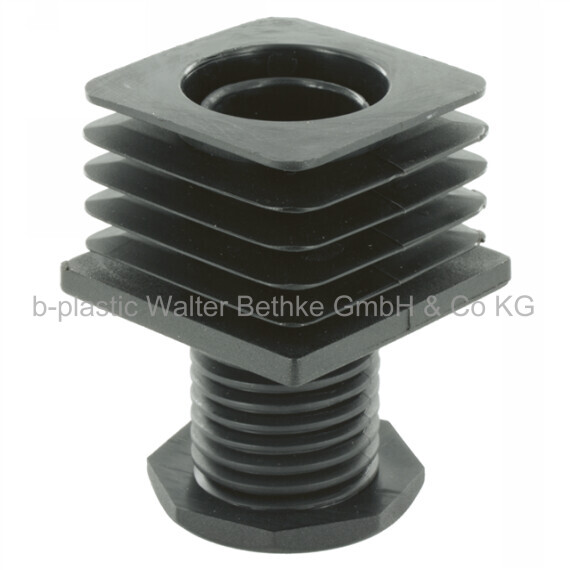

VJG (<60)

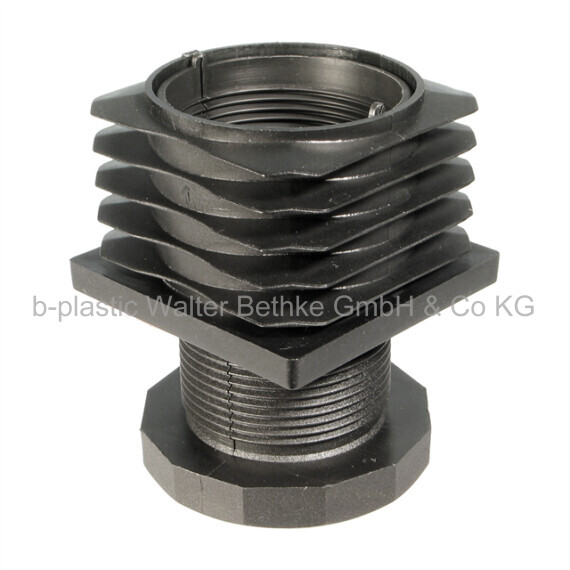

VJG 60

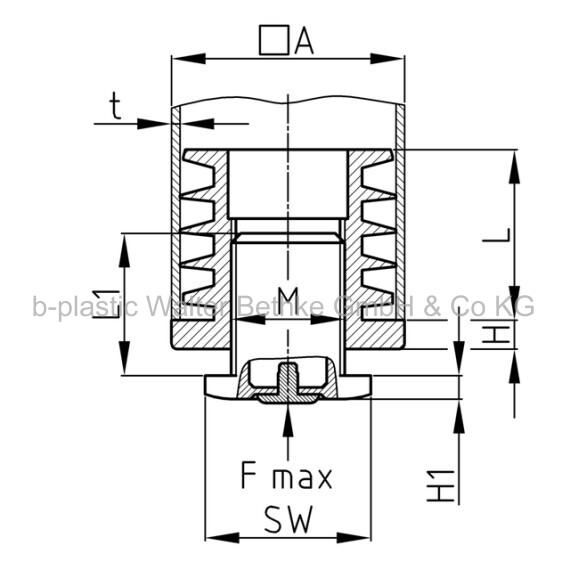

VJG < 60

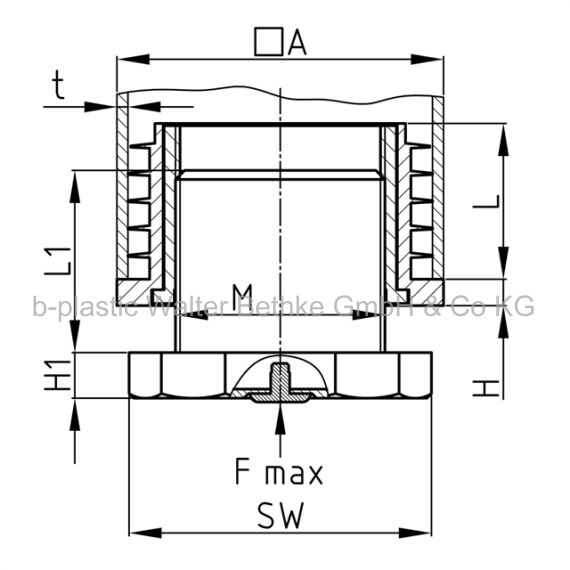

VJG 60
PDF data sheet
  • Polyamide 6 (PA 6)
black RAL 9005
  • The feet must be adjusted in an unloaded state.
  • The specified axial, static load capacity refers to a screw turned out 10 mm and resting on the full surface.
  • Adjusting plugs are not suitable as load gliders.
  • Adjusting plugs are not suitable for dynamic load.
  • Further sizes
  • Other special productions
  • *) = The lamella shape of the nut can be closed or interrupted
  • Please observe the material hints for polyamide (PA).
